Laptop Mother Boards HD Photos

Scanned SNAPE 6050A2982701-MB-A01

i3-7020U​



Scanned NM-C741 Rev. 1.0



Scanned NM-C711 Rev: 1.0

Motherboards that go in the same case:

Lenovo IdeaPad S145-15IWL NM-C121 (Intel "i" 8th gen. DIS & UMA & RAM)
Lenovo IdeaPad V15-IIL NM-C711 (Intel "i" 10th gen. UMA & RAM)
Lenovo IdeaPad 3 15IML05 NM-C781 (Intel Celeron & "i" 10th gen. DIS or UMA & RAM)
Lenovo IdeaPad 15IIL05 NM-D031 (Intel "i" 10th gen. DIS & UMA & RAM)



Scanned NM-C511 Rev: 1.0

Check if it fits with this list of boards:

Lenovo IdeaPad S145-15IWL ----- NM-C121 (Intel "i" 8th gen. DIS & UMA & RAM)
Lenovo IdeaPad V15-IIL --------- NM-C711 (Intel "i" 10th gen. UMA & RAM)
Lenovo IdeaPad 15IIL05 --------- NM-D031 (Intel "i" 10th gen. DIS & UMA & RAM)
Lenovo IdeaPad 3 15IML05 ------ NM-C781 (Intel celeron & "i" 10th gen. DIS or UMA & RAM)

I checked.
All of these are blue from the list.
And NM-C171, NM-C511 and NM-D151 is green.
And they are AMD
NM-C171 is crap that heats A6 A9 etc..
NM-C511 seems to be Ryzen 3rd gen. and the AMD A300.
NM-D151 seems to be also Ryzen 3rd gen. and the AMD A300.
Which A300 found itself in the transition from the A series to Ryzen
But it is exactly the same board shape as the ones on the list.
Even the connectors match.



Scanned NM-C362 Rev: 1.0

The ITE chip is burned.
You can see it from the plane.
But that doesn't bother the picture.
Otherwise, it is a common problem with Lenovo when the DC connector is broken.
And when the ID pin touches the positive pin.



Scanned NM-C221 Rev: 2.0



Scanned NM-C171 Rev: 1.0

Check if it fits with this list of boards:

Lenovo IdeaPad S145-15IWL ----- NM-C121 (Intel "i" 8th gen. DIS & UMA & RAM)
Lenovo IdeaPad V15-IIL --------- NM-C711 (Intel "i" 10th gen. UMA & RAM)
Lenovo IdeaPad 15IIL05 --------- NM-D031 (Intel "i" 10th gen. DIS & UMA & RAM)
Lenovo IdeaPad 3 15IML05 ------ NM-C781 (Intel celeron & "i" 10th gen. DIS or UMA & RAM)

I checked.
All of these are blue from the list.
And NM-C171, NM-C511 and NM-D151 is green.
And they are AMD
NM-C171 is crap that heats A6 A9 etc..
NM-C511 seems to be Ryzen 3rd gen. and the AMD A300.
NM-D151 seems to be also Ryzen 3rd gen. and the AMD A300.
Which A300 found itself in the transition from the A series to Ryzen
But it is exactly the same board shape as the ones on the list.
Even the connectors match.



Scanned NM-C121 Rev: 1.0

Link for Bios, PDF & BRD Schematics:
https://pkbiosfix.com/threads/lenovo-ideapad-340c-15iwl-nm-c121-bios-bin-schematic-boardview.1065/



Scanned NM-B891 Rev: 2.0



Scanned NM-B452 Rev: 1.0



Scanned NM-A531 Rev: 3.0



Scanned:
Liszt-SVT
NM-A411 Rev:1.0



Scanned NM-A381 Rev: 1.0



Scanned LMQ-2 MB 13268-1



Scanned LA-L502P Rev: 1A

My bios chip was XM25RU128CH
Since my programmer (TL866II Plus) didn't have it listed, I read it as any chip that runs at 1.8V.
I chose the 25Q128FW.
I loaded that same content into the 25Q128FW and tested it on the motherboard.
The board worked as if nothing had happened.
https://pkbiosfix.com/threads/ideapad-1-15amn7-la-l502p-type-82vg.4322/



Scanned LA-J701P Rev. 1.0



Scanned LA-J091P Rev1.0

It was scanned without the Step down controller SY8286BRAC PU301 (AWVBXP) which was burnt.
It is marked in the preview image.



Scanned LA-J081P Rev: 1.0



Scanned LA-H801P Rev.1B
BRD schematic for LA-H801P Rev.1B



Scanned LA-H782P Rev. 1A



Scanned LA-H473P Rev. 1.0



Scanned LA-H131P Rev: 1.0



Scanned LA-G021P Rev.1C

https://pkbiosfix.com/threads/acer-aspire-3-a315-41-r2d7-dh5jv-la-g021p-rev-1c.3522/



Scanned LA-F951P Rev. 1A



Scanned LA-E891P Rev: 2A



Scanned LA-C641P Rev. 1.0



Scanned LA-C551P Rev:3.0



This Mother board also exist in Dell XPS 15 9560



AMD Ryzen™ 7 5800H
GeForce RTX3060M

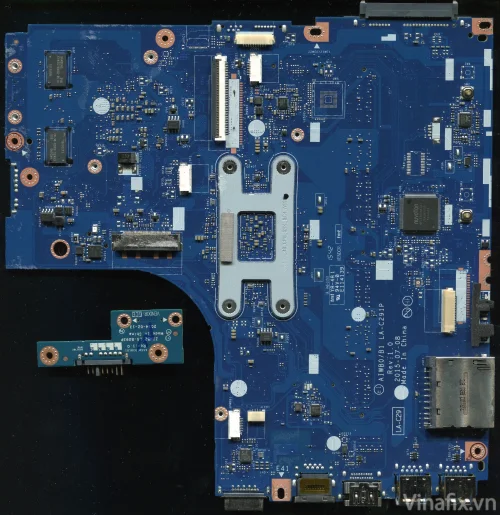

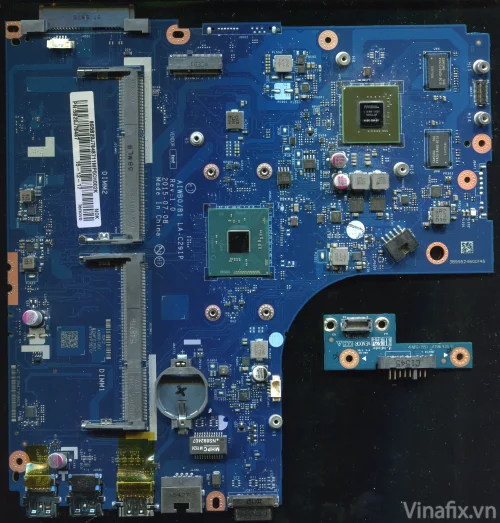

HD Photos for AIWB0 B1 LA-C291P (REV 1.0)
