HD PHOTOS NM-C711 Rev: 1.0(Lenovo V15-IIL) Scanned HD Photos

Laptop Motherboard HD Photos
Search files by board code
Browse all 33,317 files →
Scanned NM-C711 Rev: 1.0

Motherboards that go in the same case:

Lenovo IdeaPad S145-15IWL NM-C121 (Intel "i" 8th gen. DIS & UMA & RAM)
Lenovo IdeaPad V15-IIL NM-C711 (Intel "i" 10th gen. UMA & RAM)
Lenovo IdeaPad 3 15IML05 NM-C781 (Intel Celeron & "i" 10th gen. DIS or UMA & RAM)
Lenovo IdeaPad 15IIL05 NM-D031 (Intel "i" 10th gen. DIS & UMA & RAM)

About this board

High-resolution board photos of the Lenovo V15-IIL (NM-C711). They are handy for locating missing components, reading part markings and checking the revision on the silkscreen.

Lenovo had this board built by LCFC; LCFC (Lenovo/Compal) board numbers start with NM-. Check the number printed on the PCB before you download. Board revision: 1.0. Match the revision as well as the board number.

Also useful for this board
  • BIOS (full SPI chip dump, .bin)
  • EC / KBC firmware, if the board uses a separate EC chip
  • Schematic (PDF)
  • Boardview (.brd / .bdv / .cad)

Useful when a component is burned, missing or unreadable and you need a reference from a good board.

If you have a working file for this board, please share it below. More files: search NM-C711 in File Finder.

Attachments

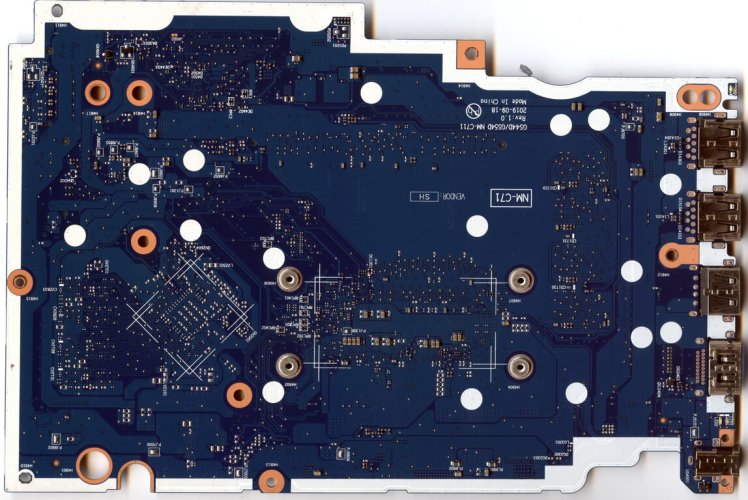

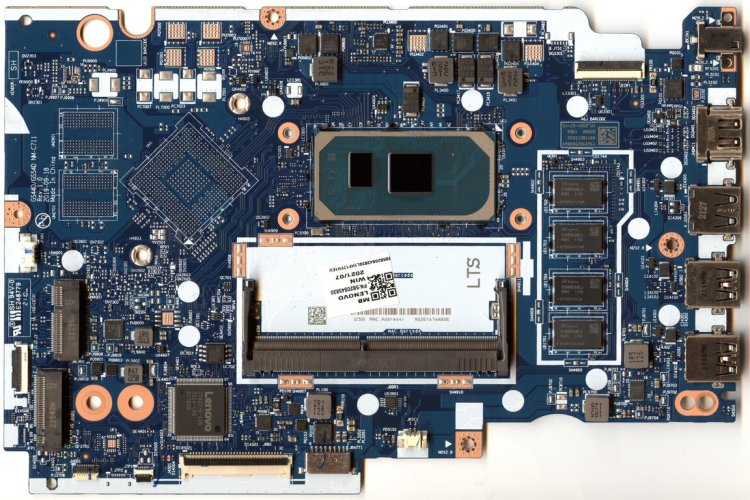

NM-C711 Rev: 1.0(Lenovo V15-IIL) Scanned HD Photos – 2023-01-19-0001_resize NM-C711 Rev: 1.0(Lenovo V15-IIL) Scanned HD Photos – 2023-01-19-0003_resize
NM-C711 (Lenovo V15-IIL).rar
22.4 MB · Views: 32
