HD PHOTOS LA-J251P Rev 1.0 (Acer Predator PT315-51) HD Photos

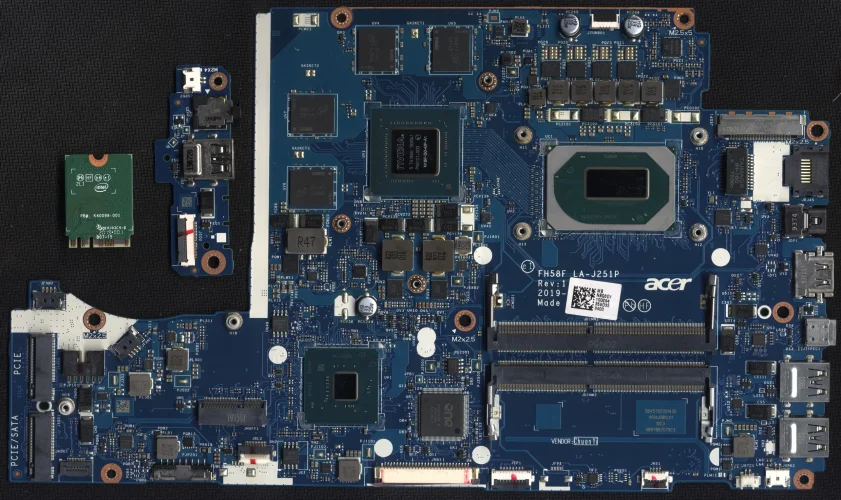

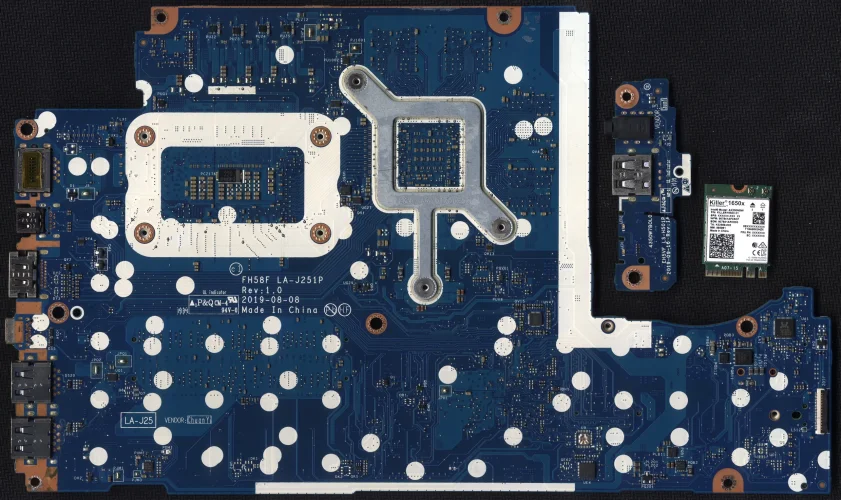

Scanned "NM-D271 Rev.1.0" motherboard in 1200DPI
In the attachment are the scans in full resolution.


Link for schematics & bios:

Thread 'Compal FH58F LA-J251P is the model of the Acer Predator Triton 300 PT315-51. BIOS BIN+SCHAMATIC+BOARDVIEW'

Jul 31, 2023

300 PT315-51 Compal FH58F LA-J251P 1.0.pdf, BIOS
Predator PT315-51 FH58F 1.08
300 PT315-51 Compal FH58F LA-J251P bios bin zip
and
Compal FH58F LA-J251P 1.0.pdf/clean me zip 300 PT315-51 Compal FH58F LA-J251P
Acer Predator Triton PT315-51 - LA-J251P-1650.bdv

The file named "300 PT315-51 Compal FH58F LA-J251P 1.0.pdf" contains schematics and BIOS information for the Predator PT315-51 FH58F 1.08 model. Additionally, there is a file named "Acer Predator Triton PT315-51 - LA-J251P REV1.0-1650.bdv."
