Dell Latitude 5520 / Precision 3560 19819-1 BIOS & Boardview

File inventory

• Models: Dell Latitude 5520 and Dell Precision 3560
• Board/platform: 19819-1
• Files included: 32MB BIOS, schematic PDF, BDV/GR boardview and high-resolution board photos
• Firmware details: SPI BIOS dump for the 19819-1 platform
• Verification: Confirm the printed board number and flash-chip capacity before programming

Always back up the original chip and verify the exact board code and flash size before programming.

DELL LATITUDE 5520 Precision 3560 /15 TGL MB 8L 19819-1
BIOS, Bin zip and Schematics and HD Photos
BOARDVIEW.CAD



[meer]

same problam



[meer]

?



[Imranromi]

Try this factory image



[meer]

Try this factory image

same prblm bro



[Imranromi]

same prblm bro

then no problem bios



[meer]

me jb ram nikalta hun to ram ki bling deta he



[Imranromi]

me jb ram nikalta hun to ram ki bling deta he

ap ny jo bios sent ki ha hm ny us k hesab sa build ki ha.
agar ap ny wo ghalt sent ki to msla hal nhe ho ga.
Q hum processor ka name puchty han is mein 10th gen or 11th gen 2no processsor han.
is thread mein tested bios upload ki hue ha wo ap try kro.
jis bios pa tested my wriiten ha wo hum ny personal check kr k upload ki ha.



[meer]

ap ny jo bios sent ki ha hm ny us k hesab sa build ki ha.
agar ap ny wo ghalt sent ki to msla hal nhe ho ga.
Q hum processor ka name puchty han is mein 10th gen or 11th gen 2no processsor han.
is thread mein tested bios upload ki hue ha wo ap try kro.
jis bios pa tested my wriiten ha wo hum ny personal check kr k upload ki ha.

me or chek kr k ap ko btata hun



[meer]

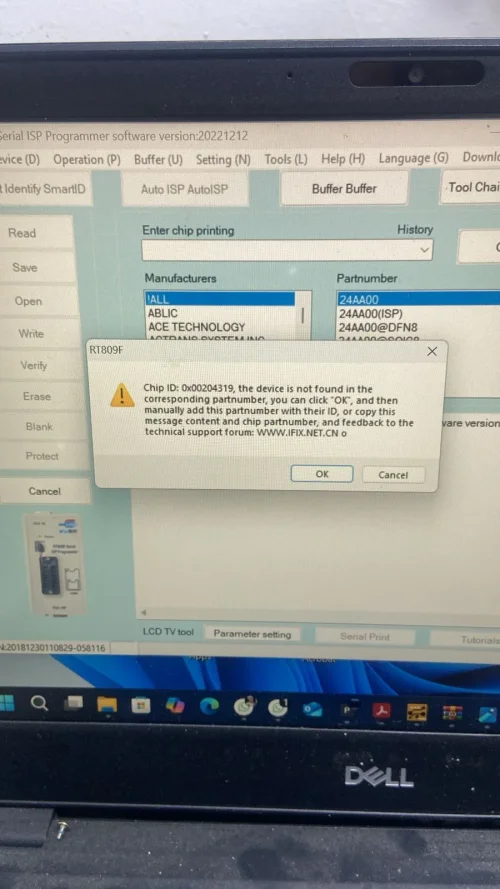

bhai is ic me password 8fc8 tha.jab read krne k liya ic nikali to ic select nao ho rahe he ye error aaraha he.



[meer]

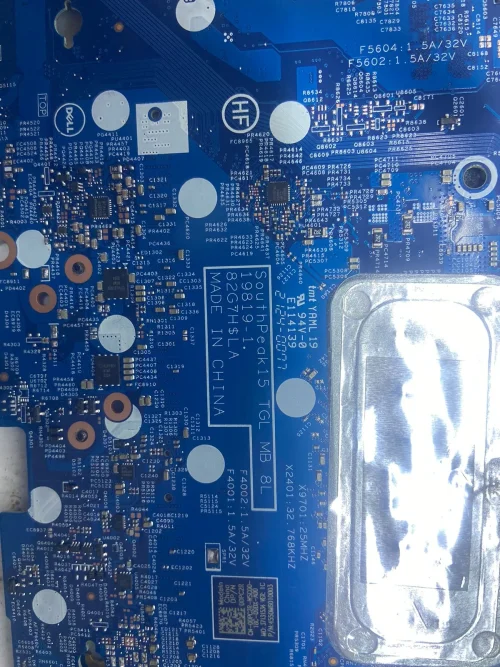

Southpeak15 TGL MB 8L 19819-1 82G7H$CA

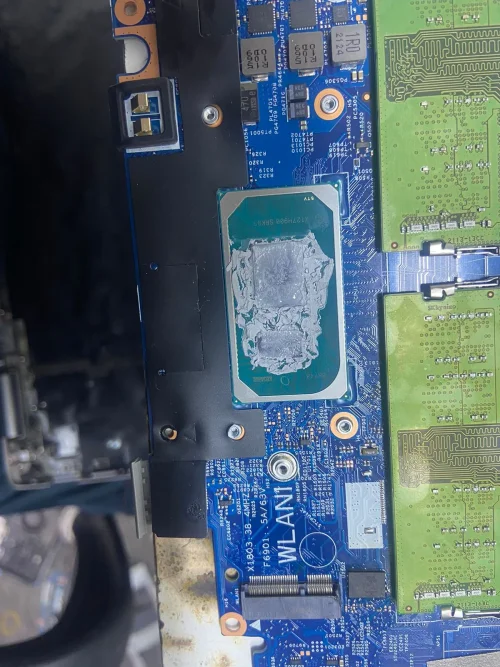

SRK1F (Intel Core i7-1185G7)​

Bios Tested by PKBIOSLAB

ye wali file progam karli busri ic me dal kr . pr 3 or 6 light bling ho raha he



[Imranromi]

bhai is ic me password 8fc8 tha.jab read krne k liya ic nikali to ic select nao ho rahe he ye error aaraha he.

ic ki id dalo manually.
add krny k bad app close kr k open kro



[meer]

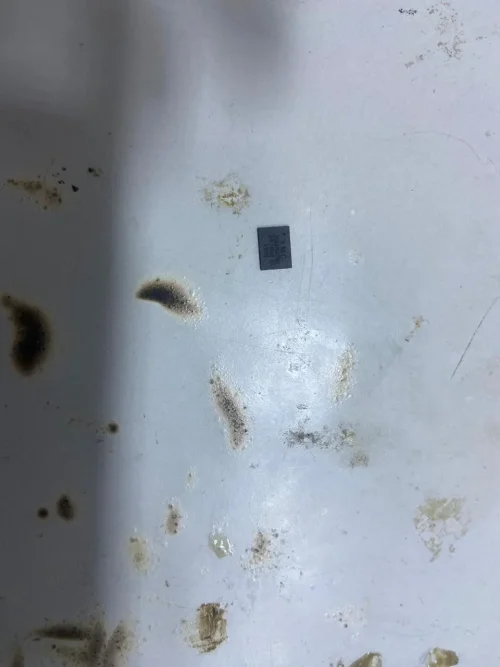

XMC
25RH256CXIQ
PPF70S00 01
2125Uye number he. k se daun



[Imranromi]

XMC
25RH256CXIQ
PPF70S00 01
2125Uye number he. k se daun

Koe b da do
Name sa nhe mtlb us ko sirf 256mb select krna ha manually



[Imranromi]

XMC
25RH256CXIQ
PPF70S00 01
2125Uye number he. k se daun

WATCH VIDEO

View: https://www.youtube.com/watch?v=BjcuxgdEvEc



[meer]

thanks



[Shahzad computer sadr]

aoa plz clear old bios problem in no display



[admin]

aoa plz clear old bios problem in no display



[sajid23]

19819-1
82G7H$KA
BUILD THIS NO DISPLAY



[admin]

19819-1
82G7H$KA
BUILD THIS NO DISPLAY

Here try and update



[BILAL AKRAM]

19819-1
SRK1F
LATITUDE 5520

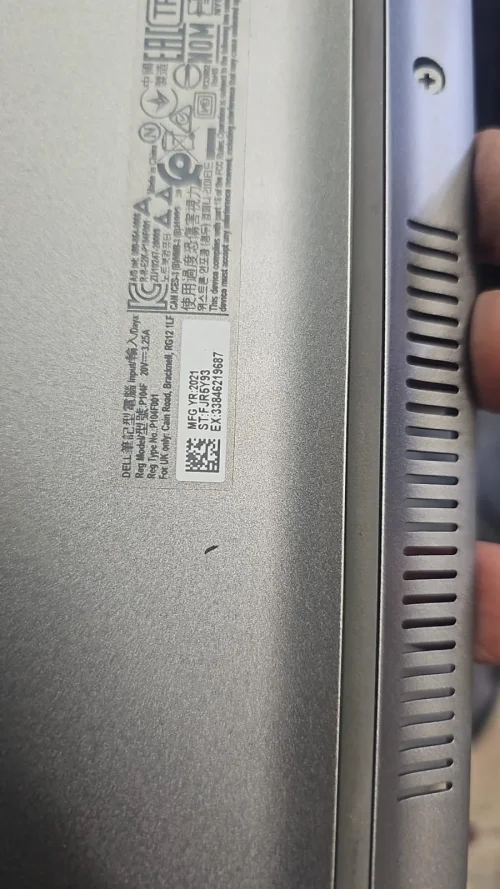

S.T : 9LNZRG3
PLEASE BUILD THE BIOS.
