BIOS Lenovo X1 Carbon Gen 9 / X1 Yoga Gen 6 NM-D341 BIOS & Boardview

File inventory

• Models: Lenovo ThinkPad X1 Carbon Gen 9 and X1 Yoga Gen 6
• Board/platform: NM-D341
• Files included: Main BIOS, EC firmware, schematic PDF and TVW/PDF boardview
• Firmware details: 32MB main BIOS and 32MB EC image
• CPU reference: Intel Core i7-1185G7 SRK1F; firmware is described as tested

Always back up the original chip and verify the exact board code and flash size before programming.

Lenovo ThinkPad X1 Carbon 9th-Gen NM-D341
BIOS,SCHEMATIC
NM-D341
CLEAN ME 32MB
EC BIOS 32MB
SCHEMATIC PDF BOARDVIEW
BOARDVIEW.TVW
SRK1F (Intel Core i7-1185G7)
TESTED MAC COMPUTER



[ARIYASYS]

MEC BIOS AND point jtag PLS



[admin7]

MEC BIOS AND point jtag PLS

Which programmer you have for read?
schematic have find own jtag bkup no have jtag info.



[Imranromi]

X1 Carbon 9th Gen (Type 20XW, 20XX) Laptop (ThinkPad) - Type 20XW NM-D341​

CLEAN ME BIOS 32MB
SRK01 Intel® Core™ i7-1165G7 Processor
BIOS VER N32ET95W



[Imranromi]

X1 Carbon 9th Gen (Type 20XW, 20XX) Laptop (ThinkPad) - Type 20XW
NM-D341
CLEAN ME BIOS
SRK1F (Intel Core i7-1185G7)
FIXED ME REGION LATEST VERSION
TESTED IMRANROMI



[imranmani335]

aoa plz build old bios problem no dp



[admin]

aoa plz build old bios problem no dp

Write complete information
Model number
Serial number
Board code
Processor code



[imranmani335]

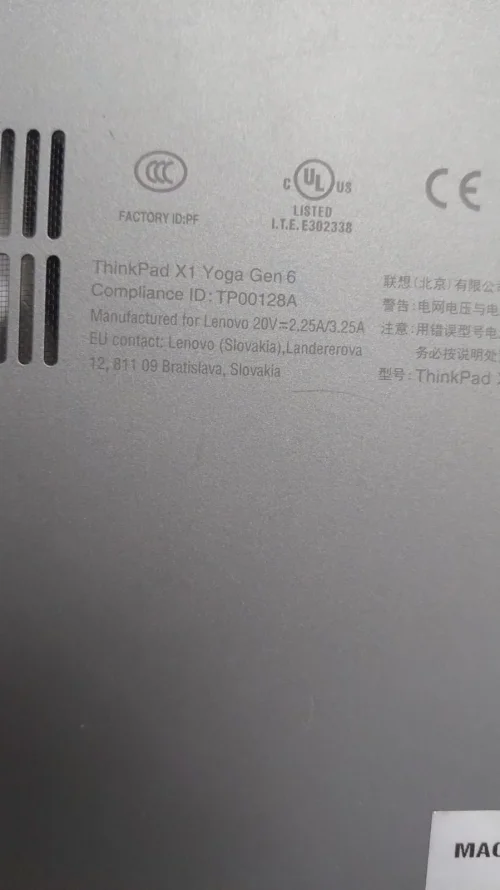

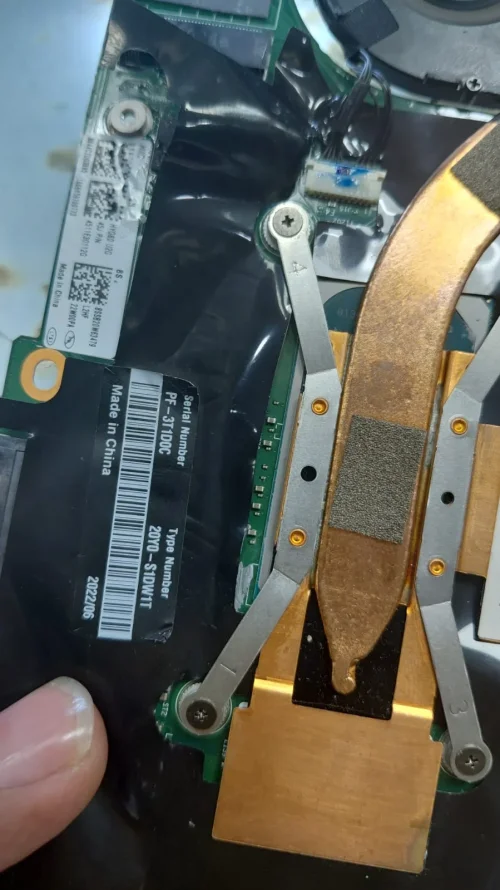

THINKPAD X1 YOGA GEN 6

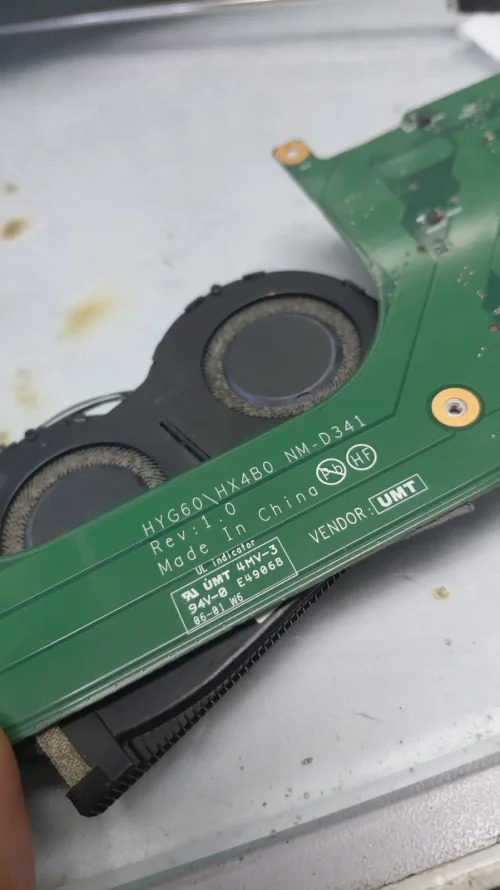

NM-D341 REV 1.0

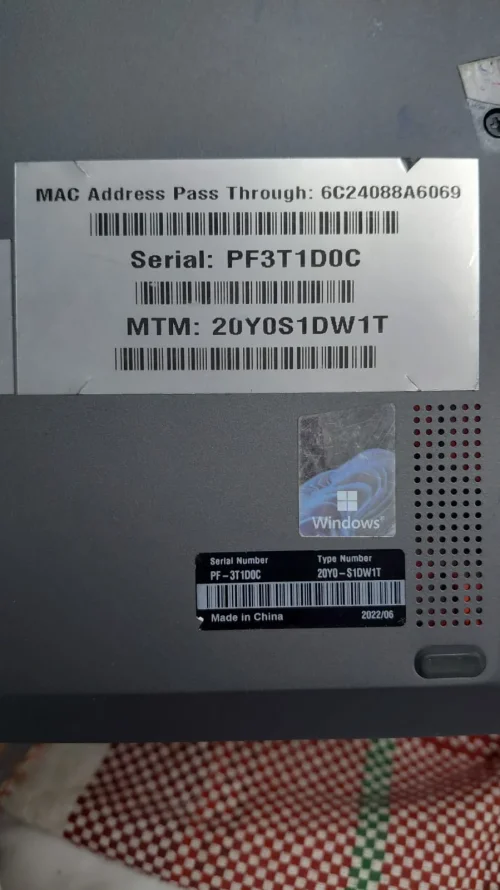

SERAIL NO PF-3T1D0C
TYPE NO 20Y0-S1DW1T
MODEL NO 20Y0S1DW1T
processor code SRK1F



[admin]

THINKPAD X1 YOGA GEN 6
NM-D341 REV 1.0
SERAIL NO PF-3T1D0C
TYPE NO 20Y0-S1DW1T
MODEL NO 20Y0S1DW1T
processor code SRK1F
