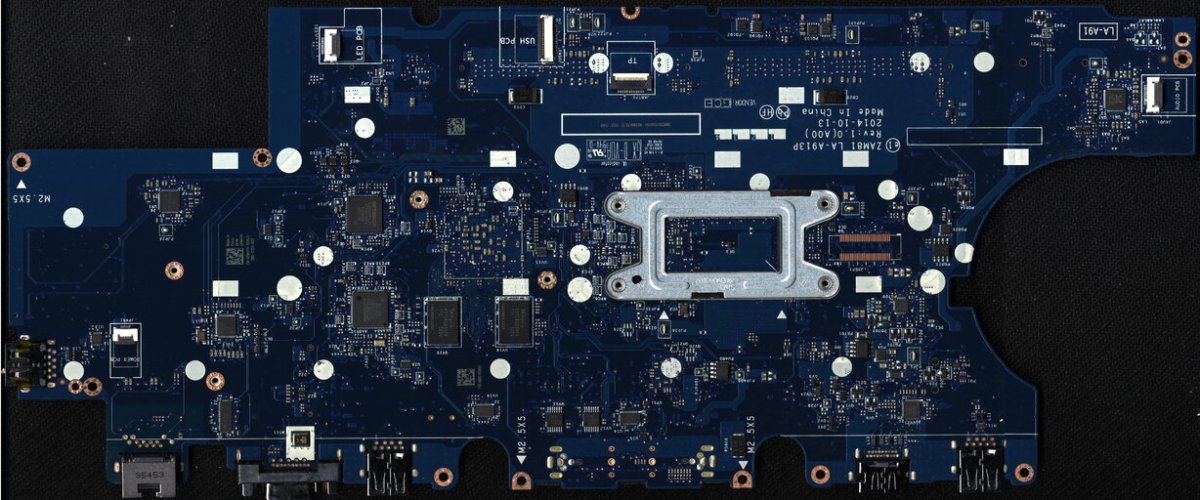

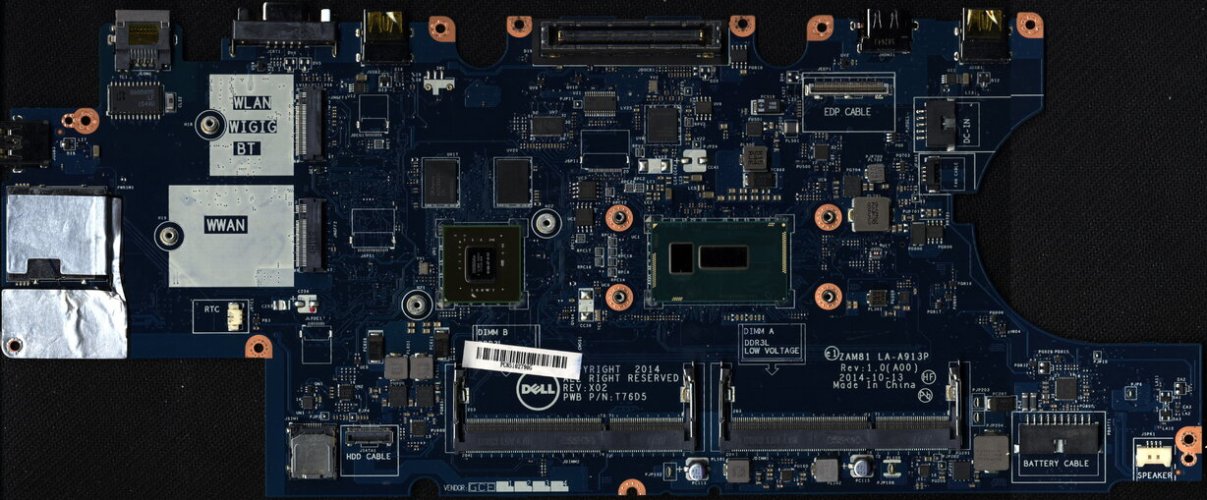

Scanned LA-A913P Rev 1.0 motherboard

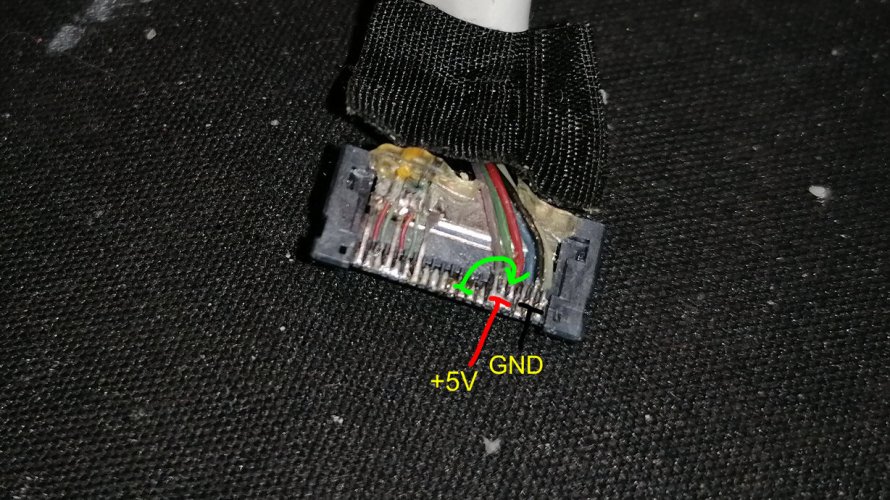

HDD Sata Connector for Dell Latitude E5450 and E5550.
Fits Sata Connector from old HP CQ42 CQ56 CQ62 G42 G62 G72.
There are only three wires to solder (shift), which was not difficult at all.
The connector that plugs into the motherboard must be opened.
To solder wires from 11,12,13 to 15,16,17.
It is +5V voltage for HDD and nothing more.
Wires from GND, sending and receiving data match.
I personally hacked and tested.
Other links for bios, BRD, PDF schematic and CD3301 Bypass
pkbiosfix.com
pkbiosfix.com
pkbiosfix.com
HDD Sata Connector for Dell Latitude E5450 and E5550.
Fits Sata Connector from old HP CQ42 CQ56 CQ62 G42 G62 G72.
There are only three wires to solder (shift), which was not difficult at all.
The connector that plugs into the motherboard must be opened.
To solder wires from 11,12,13 to 15,16,17.
It is +5V voltage for HDD and nothing more.
Wires from GND, sending and receiving data match.
I personally hacked and tested.
Other links for bios, BRD, PDF schematic and CD3301 Bypass
Dell ZAM80 ZAM81 LA-A913P LS A911P LS A912P LS A913P Bios and schematic
DELL ZAM80 ZAM81 LA-A913P LS A911P LS A912P LS A913P Compal LA-a913p r0.1
pkbiosfix.com
Dell Latitude 15 series 5000 (E5550) LA-A911P BIOS Schematic Boardview - PKBIOSFIX
Dell Latitude 15 series 5000 (E5550) Dell Latitude 5550 BIOS Version A23 LA-A911P r1.0 ZAM80 Dell Latitude E5550 Schematics diagram Processor Intel Core i7-5600U @ 2.60 GHz - 1 processor, 2 cores, 4 threads Processor ID GenuineIntel Family 6 Model 61 Stepping 4 L1 Instruction Cache 32 KB x 2 L1...
pkbiosfix.com
CD3301 - Dell Latitude E5550 LA-A911P CD3301 Bypass - PKBIOSFIX
Dell Latitude E5550 LA-A911P CD3301 Bypass
pkbiosfix.com
Attachments
LA-A913P Rev 1.0 (HD Photos).rar
66.6 MB · Views: 23
66.6 MB · Views: 23
