HP EliteBook 830 G5 6050A2930901 BIOS, Schematic & Boardview

File inventory

• Models: HP EliteBook 830 G5
• Board/platform: 6050A2930901-MB-A01
• Files included: No-display BIOS, schematic PDF, CAD boardview and high-resolution board photos
• Related reference: The first post notes the schematic is shared with the EliteBook 830 G6 platform
• Verification: Confirm the 6050A2930901 board number before using the firmware

Always back up the original chip and verify the exact board code and flash size before programming.

HP 850 G5
CPU I5 8TH
6050A2930901-MB-A01
Schematic is same as 830 g6
https://pkbiosfix.com/threads/hp-el...a3022501-mb-a01-bios-schematic-boardview.623/HP EliteBook 830 G5 6050A2930901-MB-A01 HD photo$



[admin7]

HP 850 G5
CPU I5 8TH
6050A2930901-MB-A01
Tested bios+clean me.



[BILAL AKRAM]

ITS GOOD
THANKS



[smsm7682s]

thankssssssssssssssssssssssssssss



[faranhaider]

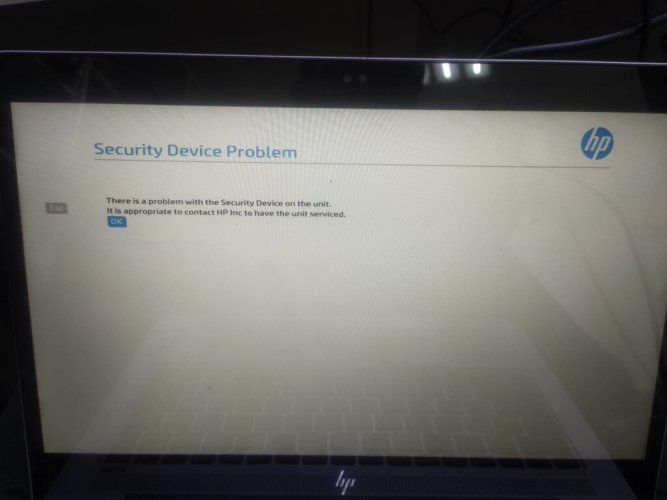

6050a2930901 SECURITY DEVICE PROBLEM



[admin7]

6050a2930901 SECURITY DEVICE PROBLEM

Try this



[ALI ABDULLAH]

AOA sir
please fix bios nodisplay hp 830 g5
CPU i5 7thgen



[Imranromi]

AOA sir
please fix bios nodisplay hp 830 g5
CPU i5 7thgen

try program Q78 BIOS
https://pkbiosfix.com/threads/hp-el...mb-a01-bios-schematic-boardview.119/#post-161



[wasim]

need 830 g5 schematic



[Imranromi]

need 830 g5 schematic

830 g5 or G6 Board schematic similar can use



[wasim]

830 g5 or G6 Board schematic similar can use

Imrom bro but i didn't find in your web



[Imranromi]

Imrom bro but i didn't find in your web

Here
https://pkbiosfix.com/threads/hp-el...a3022501-mb-a01-bios-schematic-boardview.623/



[BILAL AKRAM]

slaam bhai
830 g5 i5 8th gen
6050a2930901

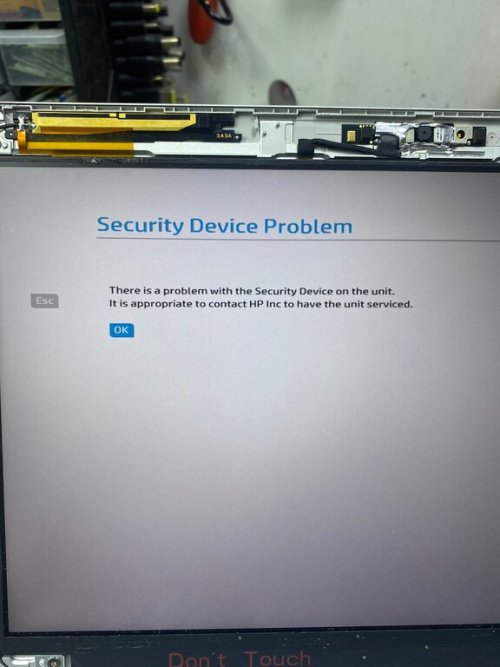

i programed bios from above post # 2. but same error.
please fix it



[admin]

slaam bhai
830 g5 i5 8th gen
6050a2930901
i programed bios from above post # 2. but same error.
please fix it

here is fixed Bios



[BILAL AKRAM]

same error and in mpm mode.



[Imranromi]

here is fixed Bios

Try
build+clean me
both bios program same time



[BILAL AKRAM]

Try
build+clean me
both bios program same time

it worked. thanks alot.



[kamran javed]

Try
build+clean me
both bios program same time

jazakAllah kher brother it works



[hammadzeee]

power on no display
sr33z



[admin]

power on no display
sr33z

tested bios in post #16
