File inventory
Dell Latitude 3410 MOCKINGBIRD-L CML UMA 6L 19746-1 BIOS
Dell Latitude 3410 - MOCKINGBIRD-L CML - 19709-1 - 19746-1 - 19775-1- 19812-1 Schematic
BOARDVIEW
- Models: Dell Latitude 3410 and Latitude 3510
- Board/platform: Mockingbird-L, 19746-1
- Files included: BIOS images, schematic PDF, BDV/GR boardview and board photos
- Firmware details: 8MB and 16MB BIOS files; some filenames reference the related 19709-1 board
- Schematic coverage: 19709, 19746, 19775 and 19812 board variants
Dell Latitude 3410 MOCKINGBIRD-L CML UMA 6L 19746-1 BIOS
Dell Latitude 3410 - MOCKINGBIRD-L CML - 19709-1 - 19746-1 - 19775-1- 19812-1 Schematic
BOARDVIEW
About this board

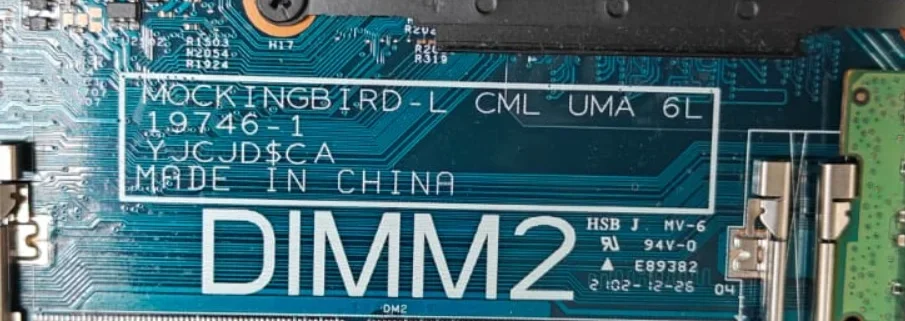

Dell Latitude 3410/3510 — motherboard 19746-1.
The board was manufactured by Wistron for Dell. Wistron board numbers are 5–6 digits plus a revision, so you can confirm it on the PCB silkscreen.
Files listed for this board
- BIOS (full SPI chip dump, .bin)
- Schematic (PDF)
- Boardview (.brd / .bdv / .cad)
Common cases: dead board after an interrupted BIOS update, ME region errors, missing serial number or UUID after a board swap, or a password lock.
Back up the original dump first — it contains machine-specific data (serial, UUID, MAC, ME), and you will want it if anything goes wrong.
Have a tested file for 19746-1? Reply below and help the next technician. Looking for something else? Search all files in the File Finder.
Attachments
19709-1 3510 8mb.rar
2.2 MB · Views: 138
2.2 MB · Views: 138
19709-1 3510 16mb ok.rar
5.5 MB · Views: 168
5.5 MB · Views: 168
WISTRON 19746-1 BOARDVIEW (BDV)(.GR) .zip
83.3 KB · Views: 2
83.3 KB · Views: 2
Last edited by a moderator:
