HD PHOTOS X545FB Rev.2.0 (Asus F545FJ) HD photos & Bios

Laptop Motherboard HD Photos
Laptop: Asus F545FJ-EJ024T
Motherboard: X545FB Rev.2.0
CPU: i7-10510U
GPU: NVIDIA GeForce MX230 (2Gb DDR5 64bit)

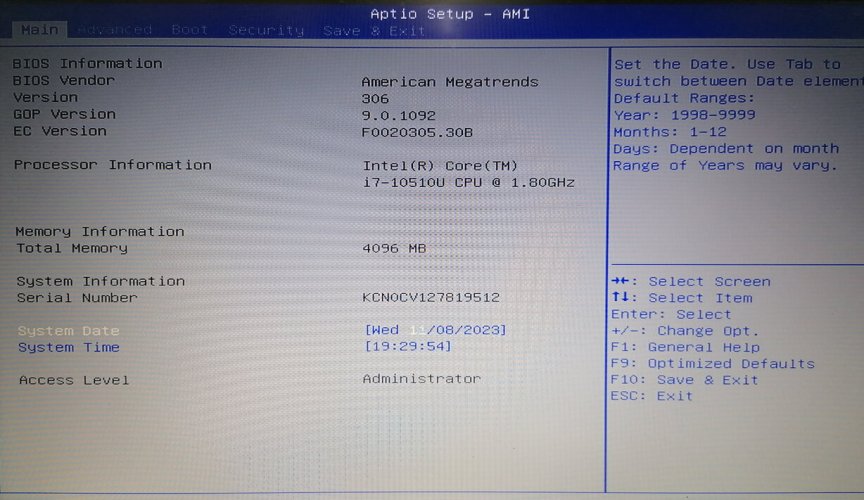

Bios was read from a working motherboard and tested

Link for Schematic.
https://pkbiosfix.com/threads/asus-x545fb-x445fb-r1-0.3432/
The battery connector is missing.
After i scanned the motherboard, it was fixed :)


Attachments

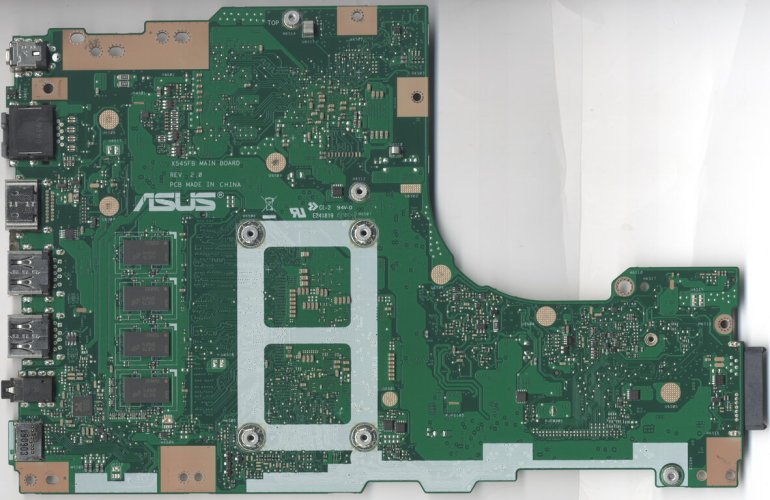

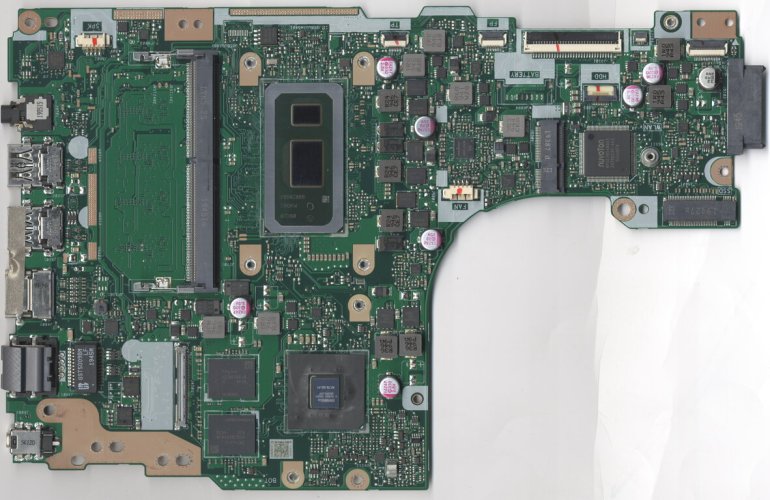

2023-11-08-12h35m_resize.jpg 2023-11-08-12h32m_resize.jpg IMG_20231108_192955.jpg
Asus X545FB Rev.2.0 (Bios).rar
5.7 MB · Views: 3
