thinkpad L14 HL4A0/HL5A0 NM-D271 BIOS BIN+SCHAMATIC+BOARDVIEW

thinkpad L14 HL4A0/HL5A0 NM-D271
Schematics
NS-D273. Schamatic
NM-D271. Schamatic
NS-D271.Schamatic
NS-D272.Schamatic
Thinkpad L14 - NM-D271 REV1.0 bios bin zip
OOK



[Valentina589]

Hello everyone,
I'm a new member on this forum. I'm seeking the BIOS bin file, schematic, and board view for the Thinkpad L14 HL4A0/HL5A0 NM-D271. These files are valuable for hardware repair or modification, but they should be handled with care and utilized only by individuals with the required expertise.



[kailash-itech]

thinkpad L14 HL4A0/HL5A0 NM-D271
Schematics
NS-D273. Schamatic
NM-D271. Schamatic
NS-D271.Schamatic
NS-D272.Schamatic
Thinkpad L14 - NM-D271 REV1.0 bios bin zip
OOK

I tried flashing this bios but the laptop doesn't turn on.

My original bios file is working but it always crashes the OS, i tried replacing SSD, RAM but nothing worked.
I think its bios problem.

Can you please look into it?



[admin]

I tried flashing this bios but the laptop doesn't turn on.

My original bios file is working but it always crashes the OS, i tried replacing SSD, RAM but nothing worked.
I think its bios problem.

Can you please look into it?

yes upload old bios ana write complete board code and processor number



[kailash-itech]

yes upload old bios ana write complete board code and processor number

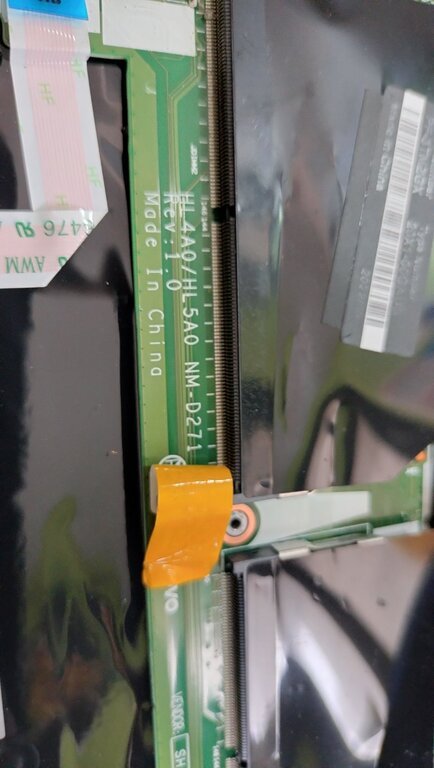

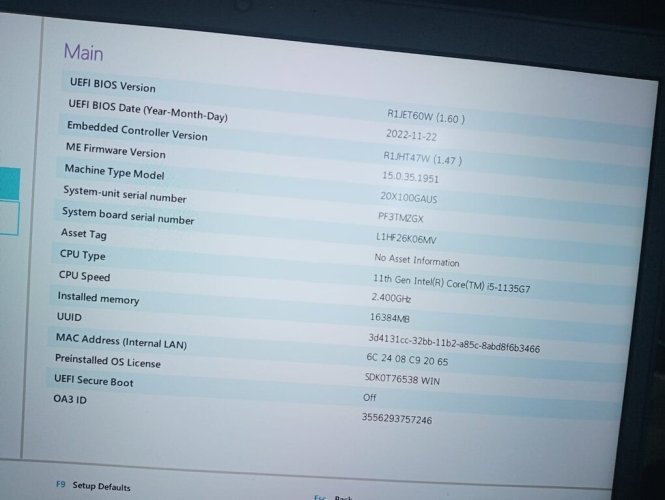

Here are all the details



[admin]

Here are all the details

here is build bios



[sajid23]

build this no dislplay



[Imranromi]

build this no dislplay

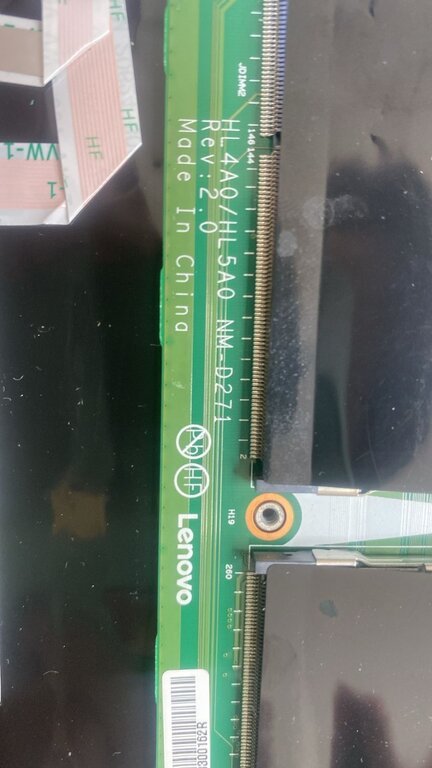

Board code

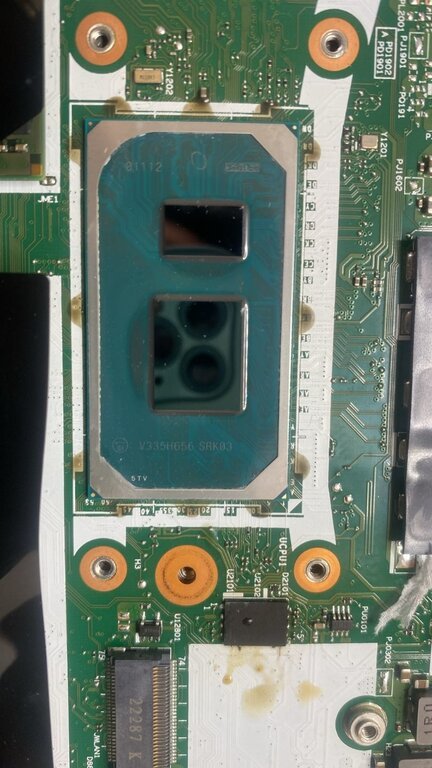

processre name written plz.



[Imranromi]

build this no dislplay

Try
build+clean me



[sajid23]

Try
build+clean me

no display only beep



[Imranromi]

no display only beep

Not bios problem i sure
