BIOS ThinkPad ET481 NM-B471 T480s (type 20L7, 20L8) BIOS +SCHAMATIC+BOARDVIEW

T480s (type 20L7, 20L8) Laptop (ThinkPad)
ET481 NM-B471 Rev 1.0
BIOS bin zip n22uj09w
and
T480S NM-B471R10- BOT.pdf
T480S NM-B471R10- TOP.pdf
ThinkPad T480S LCFC NM-B471 Schematics
EC bin ZIP OK
HD PHOTOS

HD PHOTOS - NM-B471 (Lenovo ThinkPad T480s ) Scanned HD Photos

Scanned motherboard in 1200DPI Link for Bios & schematic https://pkbiosfix.com/threads/thinkpad-et481-nm-b471-t480s-type-20l7-20l8-bios-schamatic-boardview.1970/

pkbiosfix.com



[ALI ABDULLAH]

AoA sir.
t480s not go in windows
ram is built in
please fix bios



[admin]

AoA sir.
t480s not go in windows
ram is built in
please fix bios



[Imranromi]

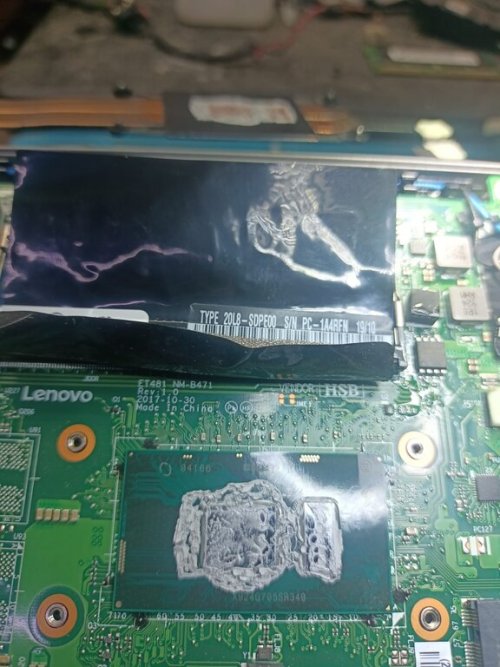

T480s (type 20L7, 20L8) Laptop (ThinkPad) - Type 20L8 NM-B471​

CLEAN ME BIOS​

W25Q128JV 16MB​

FIXED EXTERNAL RAM NOT DETECT​

SR340 (Intel Core i5-7300U)​

TESTED IMRANROMI​
