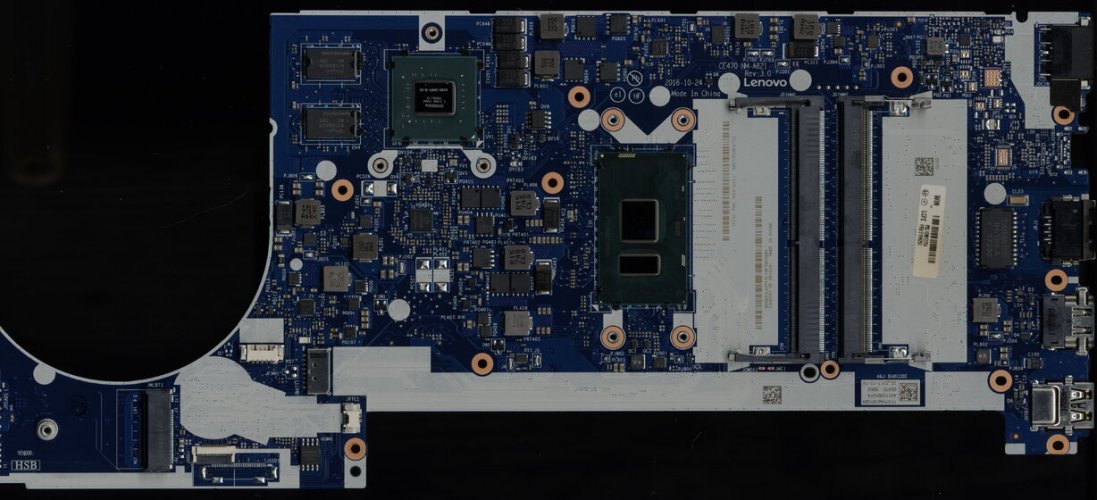

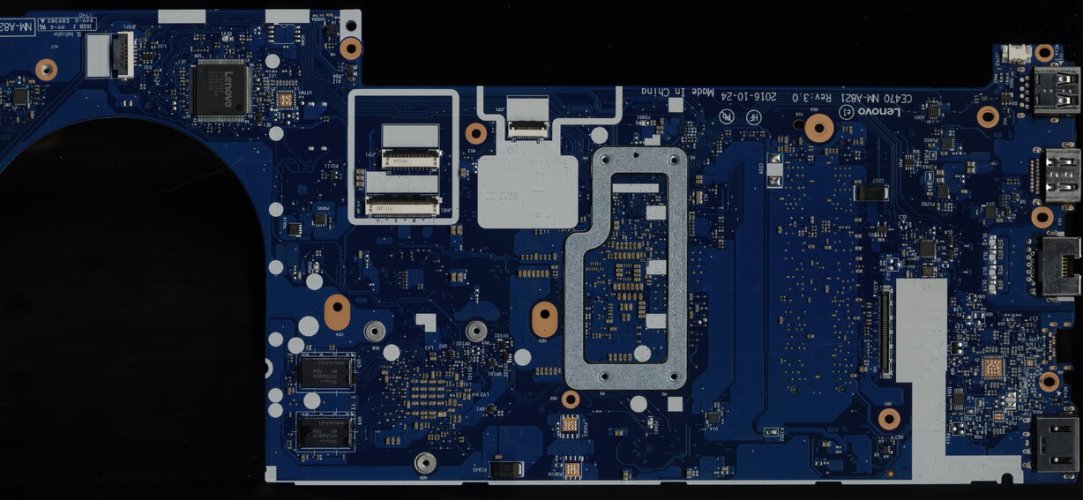

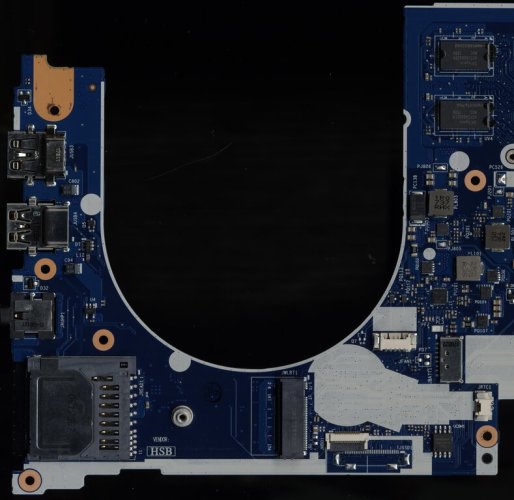

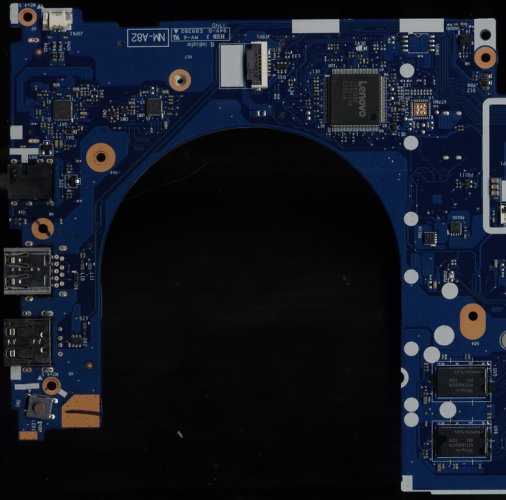

HD PHOTOS NM-A821 Rev. 3.0 (Lenovo ThinkPad E470) Scanned HD Photos

Sanned motherboard in 1200DPI
CPU: i5-7200U



Link for Bios, PDF & BRD schematic:
pkbiosfix.com

Lenovo ce470 NM-A821 Rev 1.0 BIOS BIN+SCHAMATIC+BOARDVIEW

Schematic & bios Kenobi KBL U Block Diagram KENOBI NM-A821 Rev2.0 Schematic Intel KabyLake Processor with DDR4 + PCH-LP NVIDA N16V-GMR GDDR3 2GB 2016-08-24 Rev2.0 BIOS E470 NM-A821 REV 3.0 R0DET92W boardview Lenovo E470 NM-A821 Rev 1.0 BoardView PDF.pdf ok
pkbiosfix.com pkbiosfix.com


Attachments

Preview01.jpg Preview02.jpg Preview03.jpg Preview04.jpg
