LENOVO THINKPAD E14 JE442/ JE542 NM-E211
Thinkpad E14 Gen 4 Intel - NM-E211 REV0.1 Schematic And BoardView

About this board

Lenovo Thinkpad E14 JE442/ JE542 — motherboard NM-E211.

Lenovo had this board built by LCFC; LCFC (Lenovo/Compal) board numbers start with NM-. Check the number printed on the PCB before you download.

What this thread covers
  • BIOS (full SPI chip dump, .bin)
  • Schematic (PDF)
  • Boardview (.brd / .bdv / .cad)

Usually needed when the laptop powers on with a black screen after a BIOS update, is stuck in a boot loop, or is locked with a BIOS password.

Back up the original dump first — it contains machine-specific data (serial, UUID, MAC, ME), and you will want it if anything goes wrong.

If you have a working file for this board, please share it below. More files: search NM-E211 in File Finder.

Attachments

NM-E211 REV0.1.pdf
5.4 MB · Views: 70
NM-E211 REV1.0.tvw.zip
4.2 MB · Views: 75
NS-E211.tvw.zip
171.8 KB · Views: 28
NS-E212.tvw.zip
163.1 KB · Views: 27
NS-E213.tvw.zip
27.9 KB · Views: 25
Click to expand...
BIOS BIN 512MB.
Bios bin Lenovo E15 JE442/ JE542 REV: 1.0 nm-E211.
LENOVO THINKPAD E14 JE442/ JE542 NM-E211 BIOS BIN+SCHEMATIC+BOARDVIEW – IMG_٢٠٢٣١٢١٧_٠٩٤٣٥٢LENOVO THINKPAD E14 JE442/ JE542 NM-E211 BIOS BIN+SCHEMATIC+BOARDVIEW – IMG_٢٠٢٣١٢١٧_٠٩٤٤٢١LENOVO THINKPAD E14 JE442/ JE542 NM-E211 BIOS BIN+SCHEMATIC+BOARDVIEW – IMG_٢٠٢٣١٢١٧_٠٩٤٤٣١

Last edited by a moderator:
LENOVO THINKPAD E14 JE442/ JE542 NM-E211 Thinkpad E14 Gen 4 Intel - NM-E211 REV0.1
12th Gen Intel® Core™ i7 processors

I also need Help with this Bios only the light around the power button is flashing, no display no caps lock. It just flashes the light like its trying to power up but nothing happens.

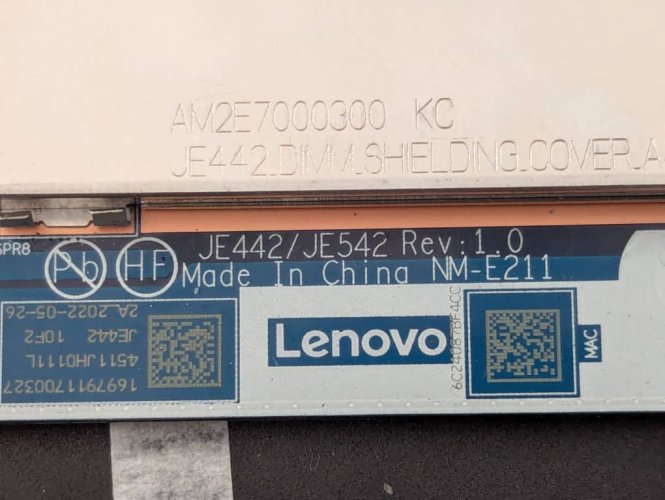

LENOVO THINKPAD E14 JE442/ JE542 NM-E211 BIOS BIN+SCHEMATIC+BOARDVIEW – E14_2LENOVO THINKPAD E14 JE442/ JE542 NM-E211 BIOS BIN+SCHEMATIC+BOARDVIEW – E14_1LENOVO THINKPAD E14 JE442/ JE542 NM-E211 BIOS BIN+SCHEMATIC+BOARDVIEW – E14_3


Attachments

E14.zip
64 MB · Views: 7
Last edited by a moderator:
ninemwe said:
LENOVO THINKPAD E14 JE442/ JE542 NM-E211 Thinkpad E14 Gen 4 Intel - NM-E211 REV0.1
12th Gen Intel® Core™ i7 processors

I also need Help with this Bios only the light around the power button is flashing, no display no caps lock. It just flashes the light like its trying to power up but nothing happens.
Click to expand...
You try bios #2?

ninemwe said:
LENOVO THINKPAD E14 JE442/ JE542 NM-E211 Thinkpad E14 Gen 4 Intel - NM-E211 REV0.1
12th Gen Intel® Core™ i7 processors

I also need Help with this Bios only the light around the power button is flashing, no display no caps lock. It just flashes the light like its trying to power up but nothing happens.
Click to expand...
Send serial number we will build new bios.
