HD PHOTOS LA-G871P Rev. 1.0 (Dell Latitude 7400) Scanned HD Photos

Laptop Motherboard HD Photos
Search files by board code
Browse all 33,264 files →
About this board

High-resolution board photos of the Dell Latitude 7400 (LA-G871P). They are handy for locating missing components, reading part markings and checking the revision on the silkscreen.

Dell had this board built by Compal; Compal board numbers start with LA- and end in P. Check the number printed on the PCB before you download. Board revision: 1.0. Match the revision as well as the board number.

Also useful for this board
  • BIOS (full SPI chip dump, .bin)
  • EC / KBC firmware, if the board uses a separate EC chip
  • Schematic (PDF)
  • Boardview (.brd / .bdv / .cad)

Useful when a component is burned, missing or unreadable and you need a reference from a good board.

If you have a working file for this board, please share it below. More files: search LA-G871P in File Finder.

Attachments

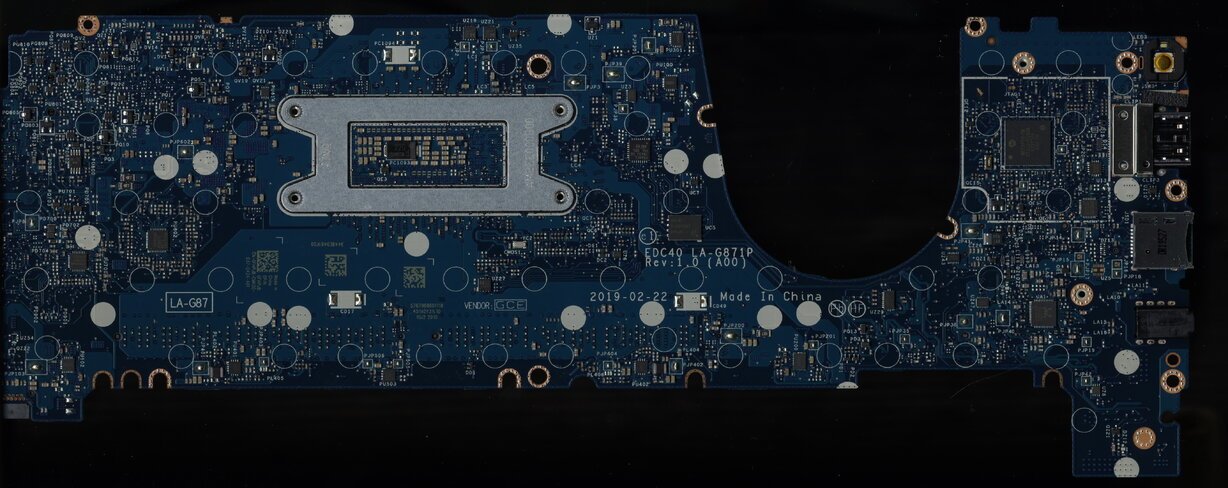

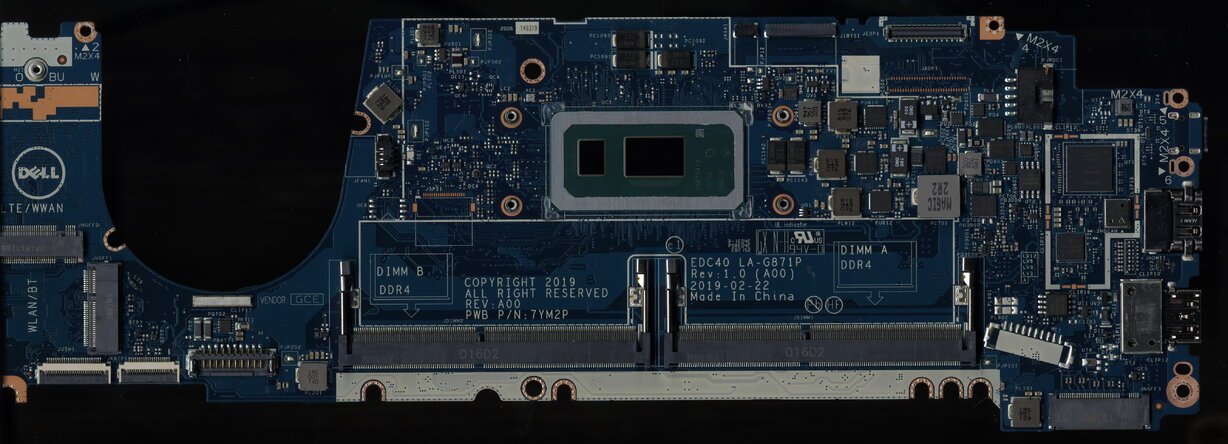

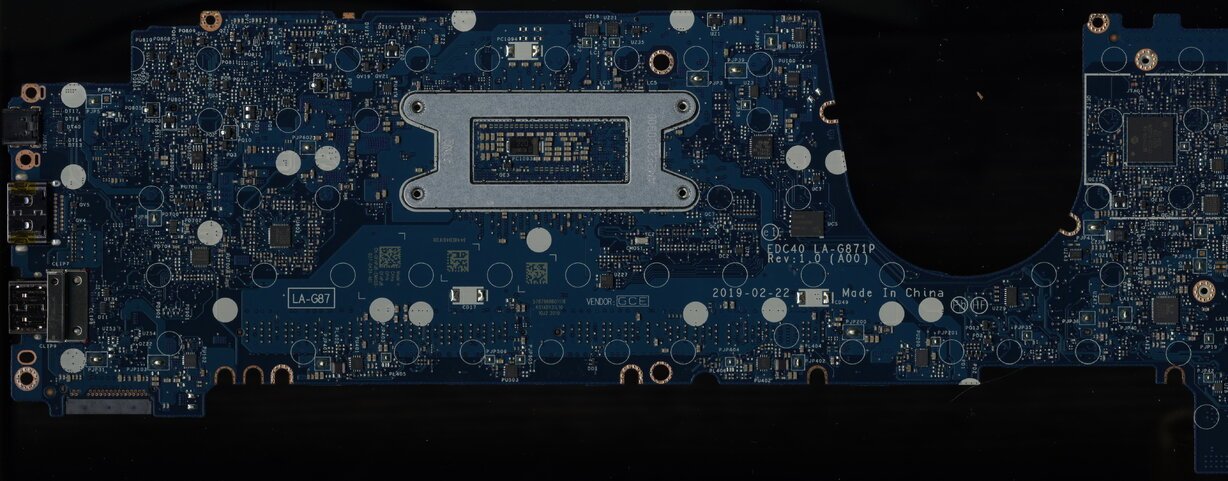

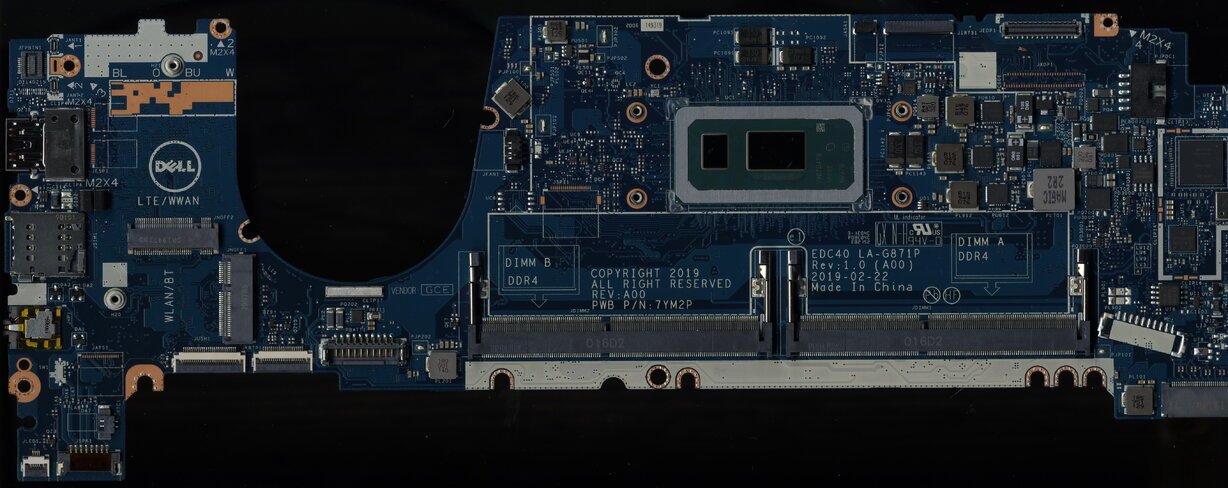

LA-G871P Rev. 1.0 (Dell Latitude 7400) Scanned HD Photos – Preview01 LA-G871P Rev. 1.0 (Dell Latitude 7400) Scanned HD Photos – Preview02 LA-G871P Rev. 1.0 (Dell Latitude 7400) Scanned HD Photos – Preview03 LA-G871P Rev. 1.0 (Dell Latitude 7400) Scanned HD Photos – Preview04
Click to expand...
Board :EDC40 LA-G871P REV:1.0
SN:FB5J633
MODEL: P100G
When you press power there is orange light then it turns off immediately . can you examine my bios and possibly fix it .


Attachments

GD25B257D@WSON8.BIN
32 MB · Views: 5
