DELL G5 15 5500

Laptops and Desktop Bios, Schematic and Boardview Files And Repairing Discussion
Search files by board code
Browse all 33,108 files →
need repair bios,i attach old..

SRH8Q (Intel Core i7-10750H​

Service Tag:C5XF663

problem is stock on first screen.

About this board

This thread is for the G5 15 5500.

Compare the board number printed on the PCB (near the RAM slots or under the battery) with the files before you flash.

Files usually needed for this board
  • BIOS (full SPI chip dump, .bin)
  • EC / KBC firmware, if the board uses a separate EC chip
  • Schematic (PDF)
  • Boardview (.brd / .bdv / .cad)

Typical reasons to reflash: no power or no display after a failed BIOS update, a BIOS/supervisor password lock, or a corrupted Intel ME region.

Back up the original dump first — it contains machine-specific data (serial, UUID, MAC, ME), and you will want it if anything goes wrong.

If you have a working file for this board, please share it below. More files: search G5 15 5500 in File Finder.

Attachments

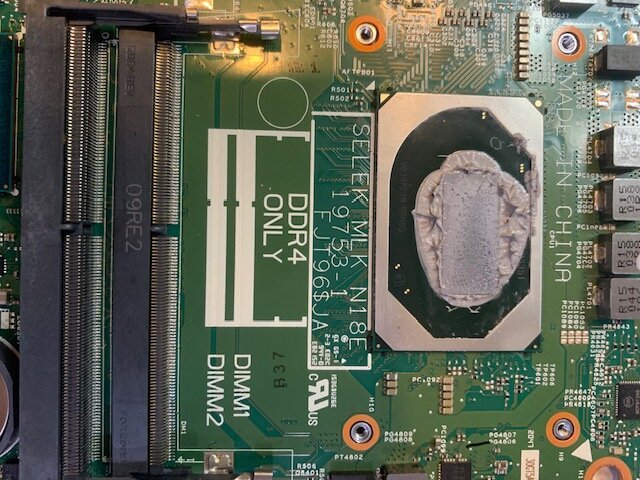

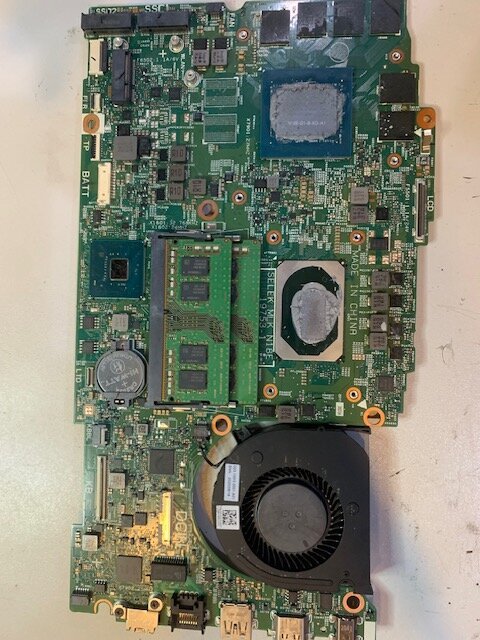

G5 15 5500 – IMG_1855 G5 15 5500 – IMG_1868
